SPIKE to SPIKE Communication

UART

Connect two SPIKE Prime hubs to communicate with each other

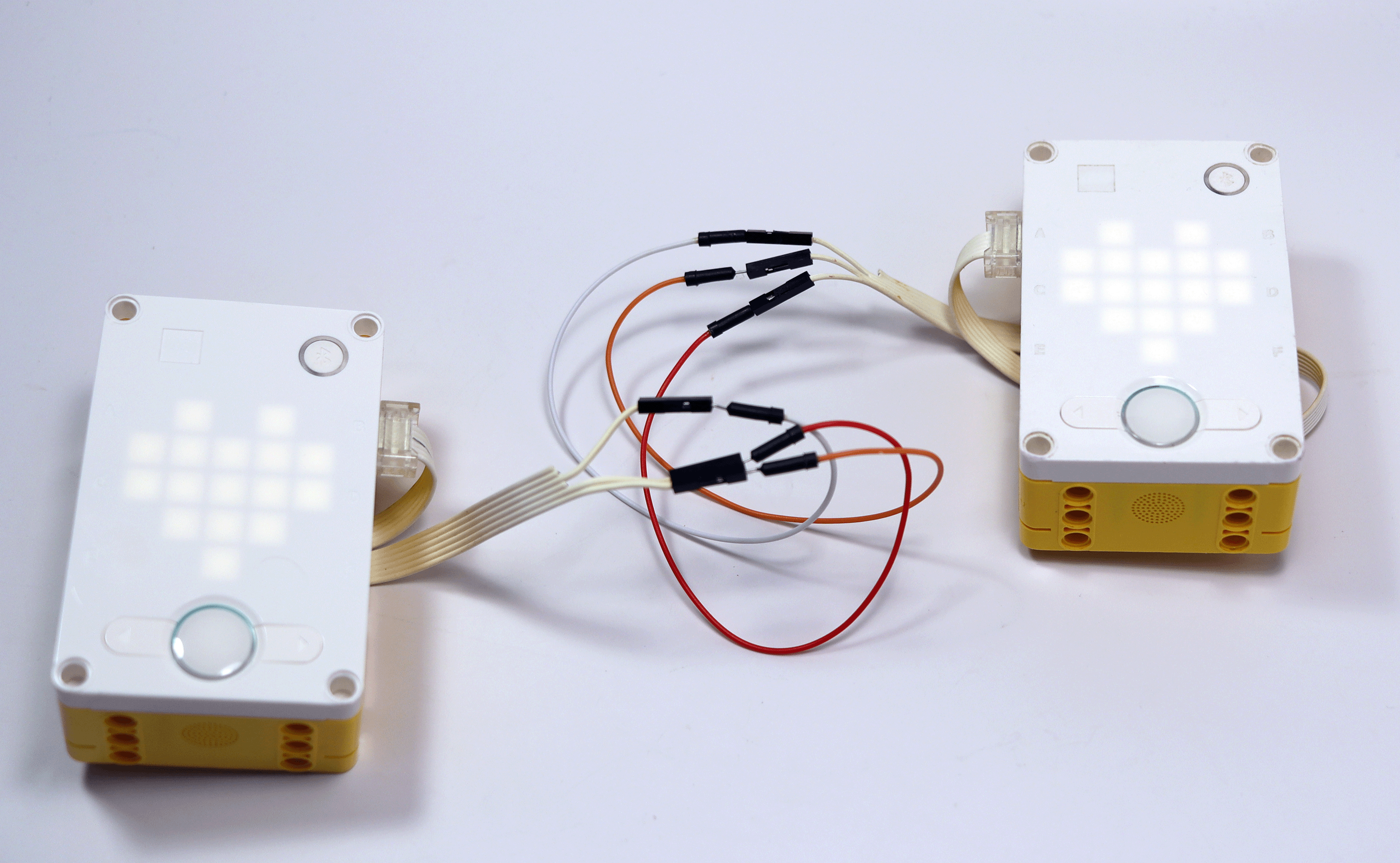

What it looks like

Click to enlarge photos.

No items found.

What you need

LEGO SPIKE Prime

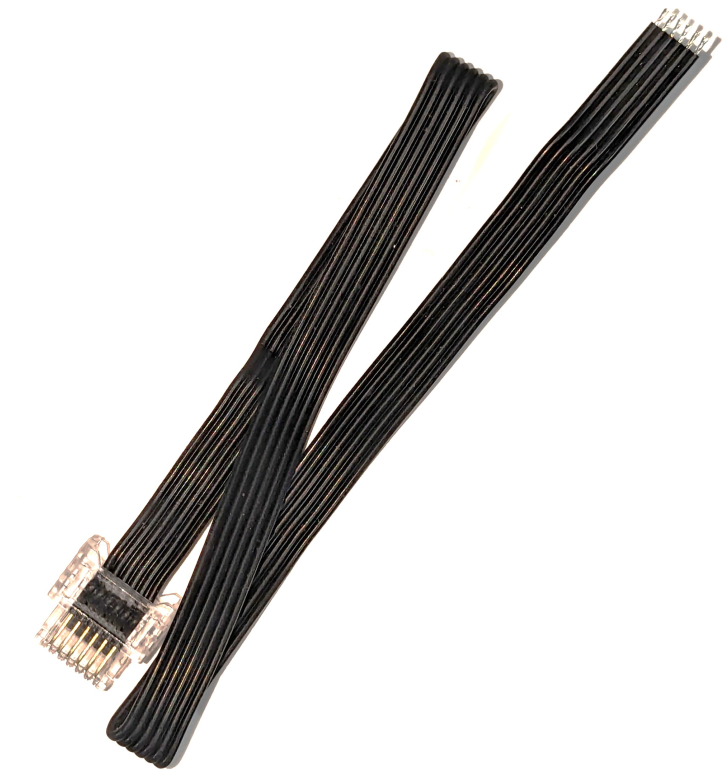

SPIKE Prime Cable

Building Instructions

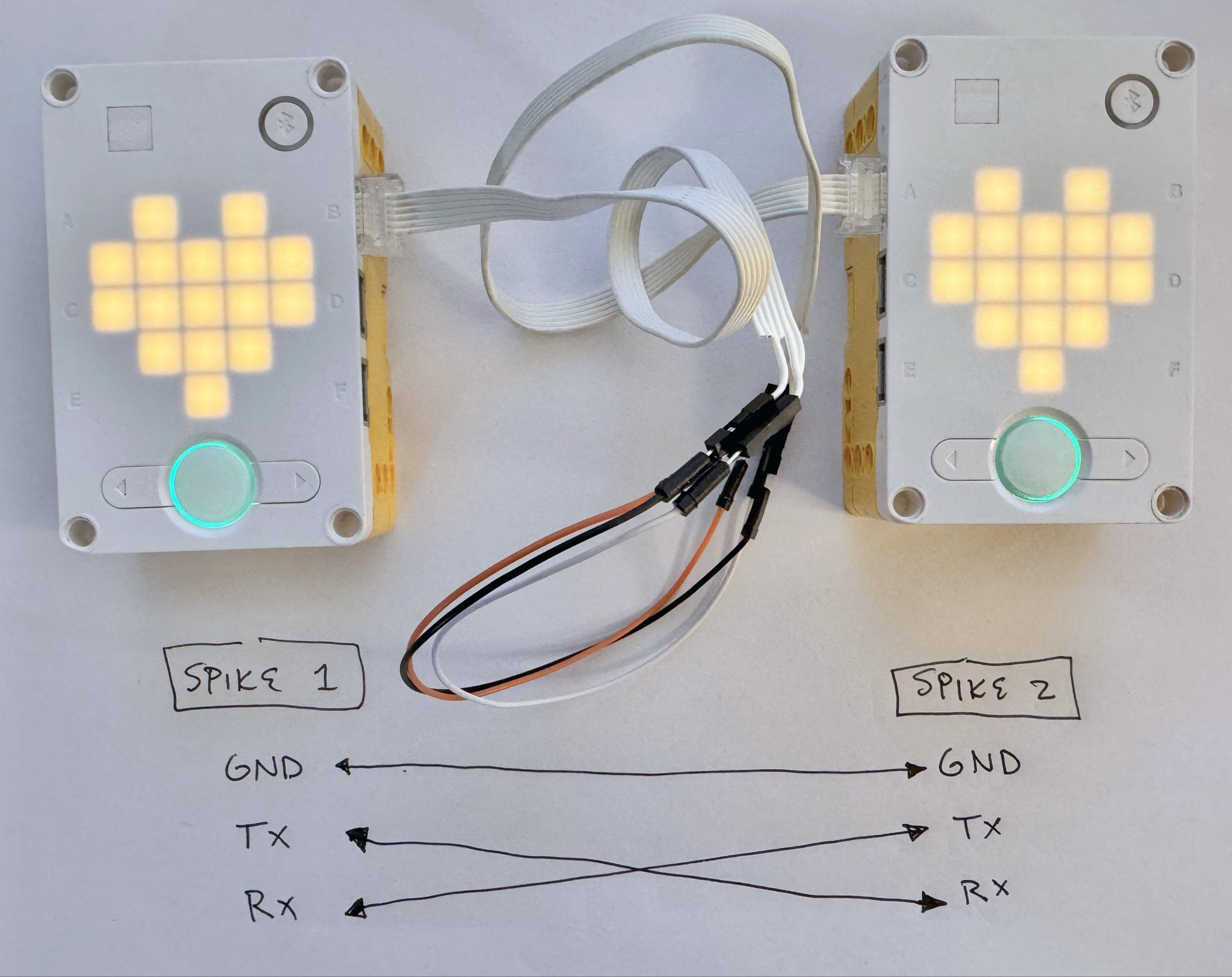

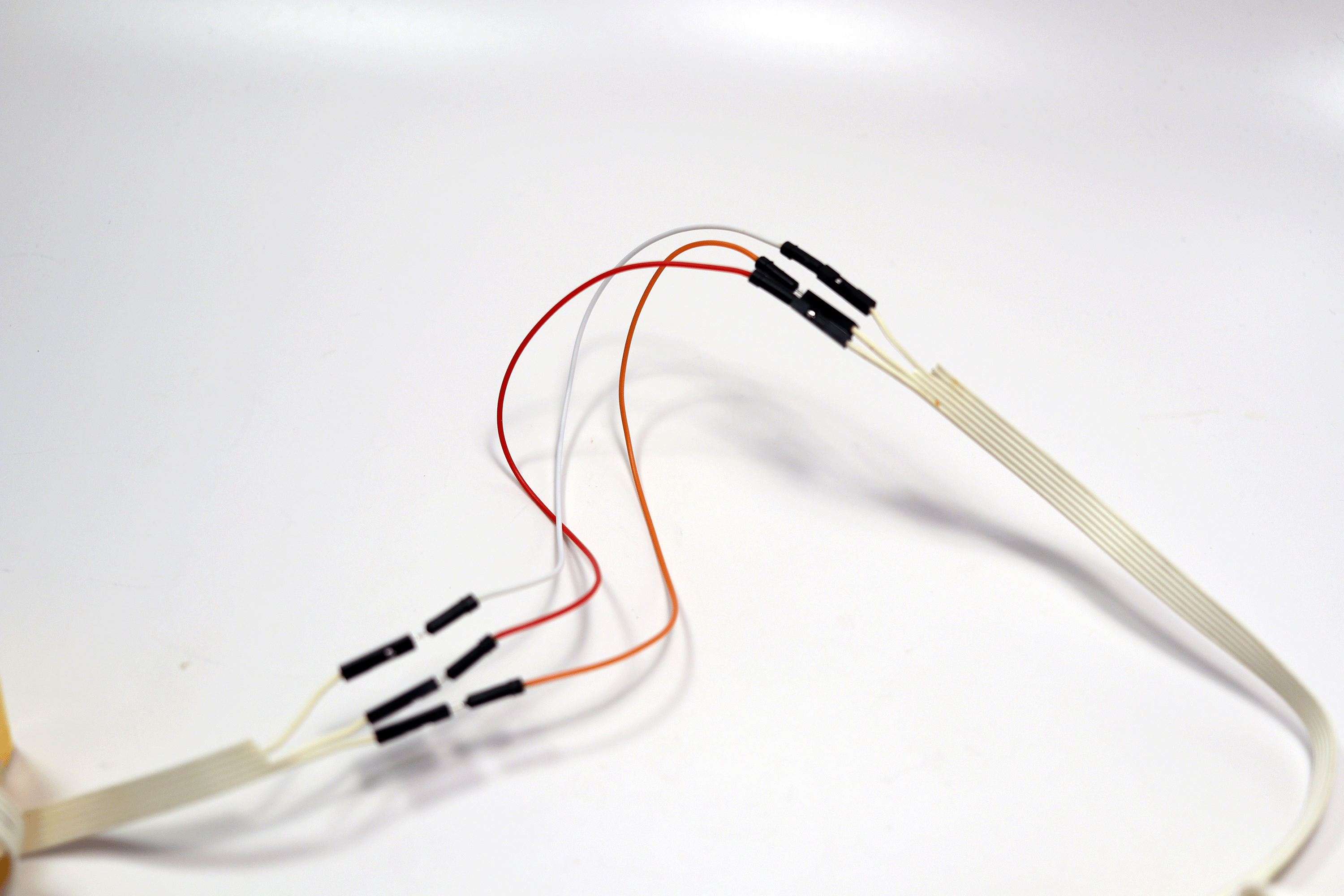

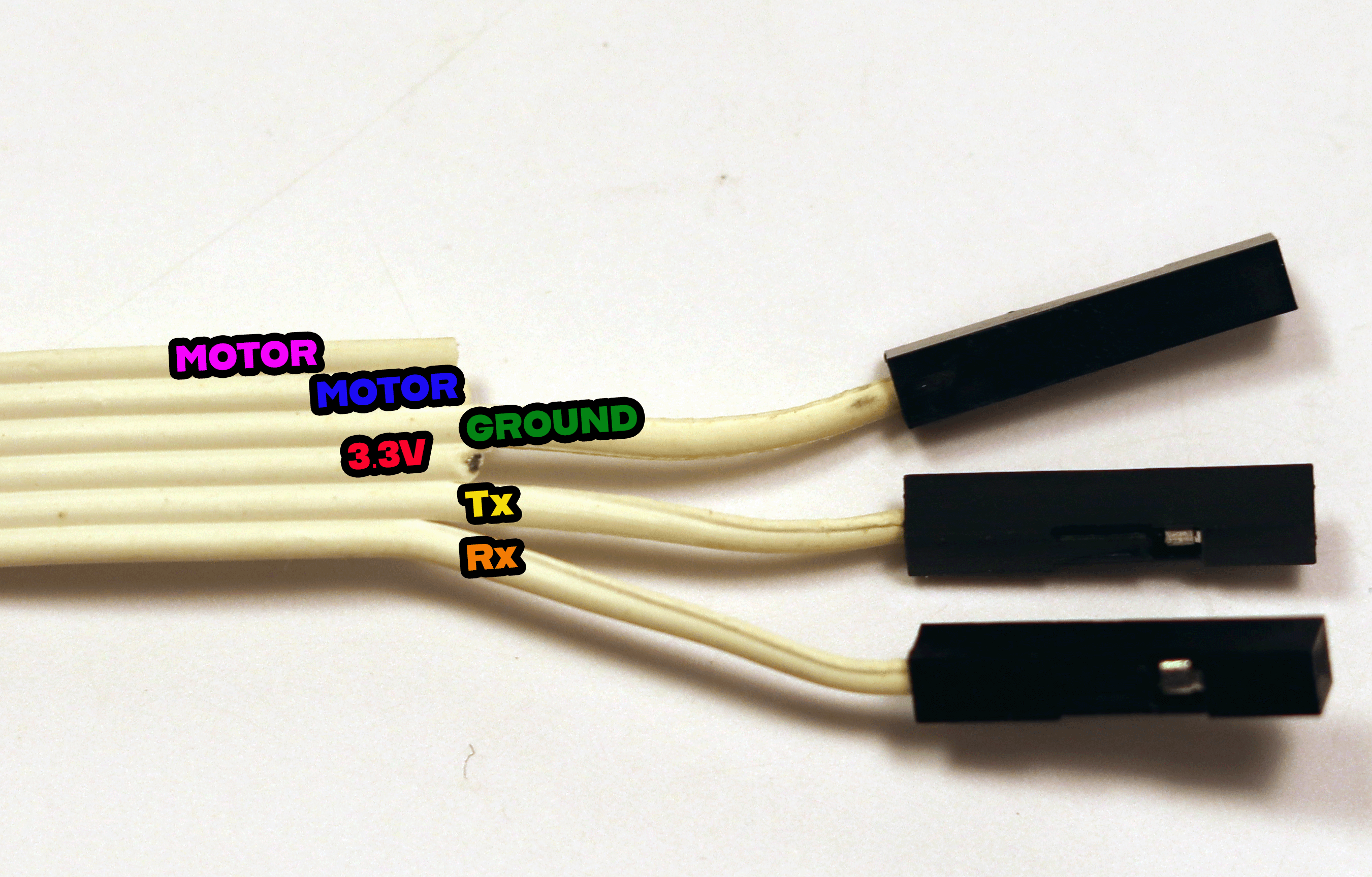

Connect cable in port B or SPIKE 1 and port A of SPIKE 2. Cross connect both Tx-to-Rx lines. Connect both grounds.

Software Instructions

Github

Using Thonny, another Python IDE, or this two IDE interface created by Chris Rogers, run SPIKE1_SendB.py on SPIKE 1 and then run SPIKE2_ ReceiveA on SPIKE 2.

See it in action
